The Ultimate Guide to Flange Rings for Engineers and Manufacturers
Flange rings may seem like a straightforward component, but they play a critical role in ensuring secure connections, structural integrity, and the overall functionality of countless mechanical systems. Whether you’re an engineer designing complex pipelines, a manufacturer sourcing parts, or a construction professional working on large-scale projects, understanding flange rings is essential.
This guide will uncover everything you need to know about flange rings, from their types and applications to advantages, selection tips, and maintenance best practices. By the end, you’ll have a clear picture of their purpose and how to choose the right flange ring for your project.
What Are Flange Rings and Why Are They Important?

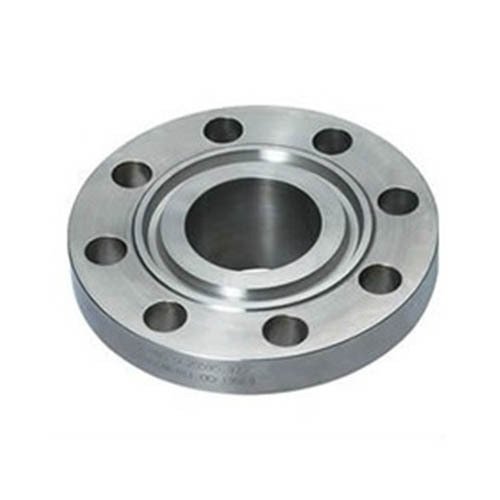

Flange rings are circular components with an inner opening that aligns with a pipe or tube. They are typically used to connect two sections of a piping system or to fasten equipment like pumps and valves. Acting as a bridge between individual components, flange rings ensure secure, leak-proof connections.
These rings are commonly utilized where high-pressure systems are involved or when regular maintenance requires disassembly. From chemical plants to HVAC systems, flange rings support seamless operations across multiple industries.
Key Functions of Flange Rings:
- Providing structural support to joints
- Preventing leaks in pipe systems
- Facilitating disassembly during maintenance
- Ensuring alignment between parts for optimal operation
Types of Flange Rings
Not all flange rings are created equal. They come in various materials, dimensions, and designs tailored for specific industries and applications. Let’s break down the common types:
By Material
- Carbon Steel Flange Rings
-
-
- Known for their strength and affordability, carbon steel flange rings are ideal for high-pressure and high-temperature environments.
- Common in industrial setups like power plants and refineries.
-
- Stainless Steel Flange Rings
-
-
- These resist corrosion and are perfect for environments exposed to moisture, chemicals, and extreme temperatures.
- Used in water treatment plants, food processing, and chemical manufacturing.
-
- Plastic Flange Rings
-
-
- Lightweight and cost-effective, plastic flange rings work well with low-pressure applications.
- Found in plumbing and irrigation systems.
-
- Alloy Flange Rings
-
-
- Designed for highly specialized applications, alloy flange rings combine durability with corrosion resistance.
- Often used in aerospace and marine industries.
-
By Dimensions and Specifications
- Standard ANSI/ASME Flange Rings: Follow global standards for diameter, pressure rating, and thickness.
- Custom Fabricated Flange Rings: Tailored to meet unique project requirements.
- High-Pressure Flange Rings: Designed with enhanced rigidity to safely handle demanding conditions.
- Slip-On vs. Weld-Neck: Slip-on types are easy to install, while weld-neck types provide better structural support for high-stress workloads.
Coatings and Finishes
Make sure to also account for any coatings, such as galvanization or epoxy lining, to improve durability based on environmental conditions.
Industries That Rely on Flange Rings
Flange rings are indispensable across various sectors. Below are some of the most prominent industries where they are frequently used:
- Oil & Gas: Ensures pipeline safety and efficient transportation of petroleum or natural gas under high pressure.
- Chemical Processing: Corrosion-resistant flange rings are critical in systems handling volatile chemicals.
- Water Treatment Plants: Supports clean water flow and durable connections.
- Power Generation: Keeps steam lines and systems in power plants running efficiently.
- Construction: Used in HVAC, drainage, and fire suppression systems.
- Aerospace & Marine: Alloy flange rings ensure reliability under extreme conditions like saltwater exposure or high-speed flight.
Advantages of Using Flange Rings
Integrating flange rings into mechanical systems comes with several key benefits:
1. Ease of Assembly and Disassembly
Flange rings allow sections to be connected and separated with minimal effort, simplifying routine maintenance.
2. Strong Seal and Leak Prevention
Thanks to gaskets between flanges, these rings ensure a leak-proof connection, even in high-pressure setups.
3. Versatility
Flange rings accommodate diverse piping systems by offering compatibility across materials, sizes, and configurations.
4. Cost Efficiency
Flange rings reduce long-term costs by facilitating fewer repairs and prolonging pipeline longevity.
5. Customization
Engineers can modify dimensions, materials, and finishes to suit nearly any specification.
How to Select the Right Flange Ring
Choosing the right flange ring is all about assessing the specific needs of your project. Consider these factors:
1. Material Compatibility
Match the ring material to the piping system (e.g., stainless steel for corrosive environments).
2. Pressure and Temperature Ratings
Check the pressure-class rating (e.g., 150#, 300#) and ensure the flange ring can withstand expected temperature ranges.
3. Size and Dimensions
Measure both the pipe and flange dimensions accurately, including inner diameter, bolt circle diameter, and bolt hole specifications.
4. Environment
For corrosive or humid conditions, opt for protective coatings like PTFE. Stainless steel or alloy materials also work well in demanding environments.
5. Standards Compliance
Ensure the flange rings meet relevant international standards like ANSI or ASME to guarantee safety and performance.
Installation and Maintenance of Flange Rings
Proper installation and maintenance are crucial for the reliable performance of flange rings. Here’s a quick guide:
Installation Best Practices:
- Inspect components: Ensure the flange ring, bolts, and gaskets are in optimal condition before installation.
- Align precisely: Improper alignment can lead to leaks or structural failure.
- Apply uniform torque: Tighten bolts evenly in a cross-pattern sequence to prevent uneven pressure on the gasket.
- Use the appropriate tools: Employ fitting tools like torque wrenches for accurate assembly.
Maintenance Tips:
- Conduct regular inspections to identify signs of rust, wear, or deformation.
- Replace gaskets periodically to maintain leak-proof seals.
- Clean and lubricate bolts to prevent seizing or corrosion.
- Retighten bolts as needed to maintain proper torque levels over time.
The Future of Flange Rings in Modern Engineering
Flange rings might be simple in concept, but their importance is unparalleled in modern engineering. With advances in materials science and manufacturing technology, we’re seeing stronger, more durable flange rings that can handle extreme conditions. Additionally, innovations in design and precision machining are paving the way for even safer, more efficient flange systems.
For engineers and manufacturers, flange rings will remain a vital component for maintaining safety, efficiency, and functionality in industrial systems.
Whether you’re designing your first system or optimizing an existing setup, understanding the role flange rings play is essential to achieving long-term success.
