Nitronic 50 Stainless Steel: High-Strength Austenitic Alloy for Corrosive Environments
What is Nitronic 50 Stainless Steel?
Nitronic 50 Stainless Steel, also known as XM-19, is a high-strength austenitic stainless steel that delivers outstanding corrosion resistance, excellent mechanical strength, and superior toughness. Designed to outperform traditional grades like 316L and 317L, Nitronic 50 is especially effective in harsh marine, chemical, and food processing environments.
Key Features and Benefits
Nitronic 50 offers a rare combination of mechanical strength and corrosion resistance, making it ideal for critical industrial components.
✓ Corrosion Resistance
-
Superior resistance to pitting, crevice corrosion, and chloride stress-corrosion cracking
-
Ideal for marine, offshore, and chemical processing applications
✓ High Strength
-
Nearly double the yield strength of 316L and 317L stainless steels
-
Withstands high-pressure applications
✓ Temperature Tolerance
-
Performs well in both cryogenic and elevated temperatures
✓ Non-Magnetic
-
Remains non-magnetic even after cold working
-
Ideal for applications requiring low magnetic permeability
Chemical Composition (%)
| Element | Content |
|---|---|
| Chromium (Cr) | 20.5 – 23.5% |
| Nickel (Ni) | 11.5 – 13.5% |
| Manganese (Mn) | 4.0 – 6.0% |
| Molybdenum (Mo) | 1.5 – 3.0% |
| Nitrogen (N) | 0.20 – 0.40% |
| Silicon (Si) | ≤ 1.0% |
| Carbon (C) | ≤ 0.06% |
| Iron (Fe) | Balance |
Typical Applications
-
Pump shafts and valve components
-
Heat exchangers and pressure vessels
-
Marine hardware and shipbuilding
-
Paper & pulp industry
-
Pharmaceutical and food processing plants

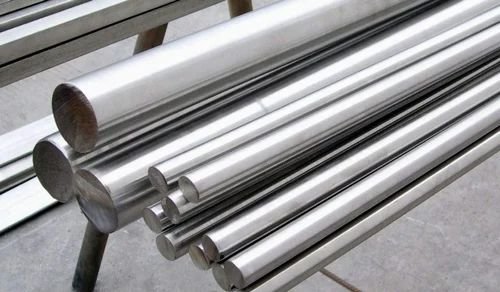

Available Forms
We offer Nitronic 50 Stainless Steel in the following forged and machined forms:
-
Open-die forgings
-
Shafts
-
Rings
-
Blocks
-
Bars and billets
-
Custom forged components
🔗 Explore our forging capabilities:
Visit Open Die Forging Services
Learn more about our Engineering Solutions
Why Choose Us for Nitronic 50 Forgings?
At AM Engineering Works, we provide precision-engineered Nitronic 50 forgings that meet international standards. Our in-house open die forging and CNC machining capabilities ensure tight tolerances, fast delivery, and superior quality.
Certifications:
-
ASTM A276 / ASTM A479
-
ASME and NACE compliance upon request
Product Specifications
| Property | Value |
|---|---|
| Density | 7.9 g/cm³ |
| Yield Strength (0.2%) | ≥ 379 MPa (annealed) |
| Tensile Strength | ≥ 690 MPa |
| Elongation | ≥ 35% |
| Hardness (Brinell) | ~241 HB |
| Magnetic | Non-magnetic |
Surface Finish Options
-
Rough machined
-
Turned
-
Ground
-
Custom-finished to specifications
